The around-view system that doesn't fall apart when the truck turns.

KADEA builds AI surround-view monitoring for commercial and heavy vehicles. Our flagship, Tandem Vision, is a 6-channel dual-box system engineered for tractor-trailers — keeping the view intact at the exact moment off-tracking accidents happen.

See Tandem Vision Watch the video ▸

The problem

Large vehicles carry the deadliest blind spots on the road.

Conventional around-view systems are built for rigid bodies. The instant an articulated vehicle turns, the stitched image tears at the coupling — exactly where off-tracking collisions occur.

5,340US large-truck crash deaths in 2024
+30%rise over the past decade
53%of road deaths are pedestrians & cyclists
~1/3of truck collisions in blind-spot "No-Zones" (FMCSA)

Product line

Tandem Vision & Quantum Vision

A scalable surround-view platform — from standard trucks to the largest articulated vehicles on the road.

Flagship · 6-Channel · Model K-6CHFTV

Tandem Vision

AI Around-View System for Articulated Commercial Vehicles

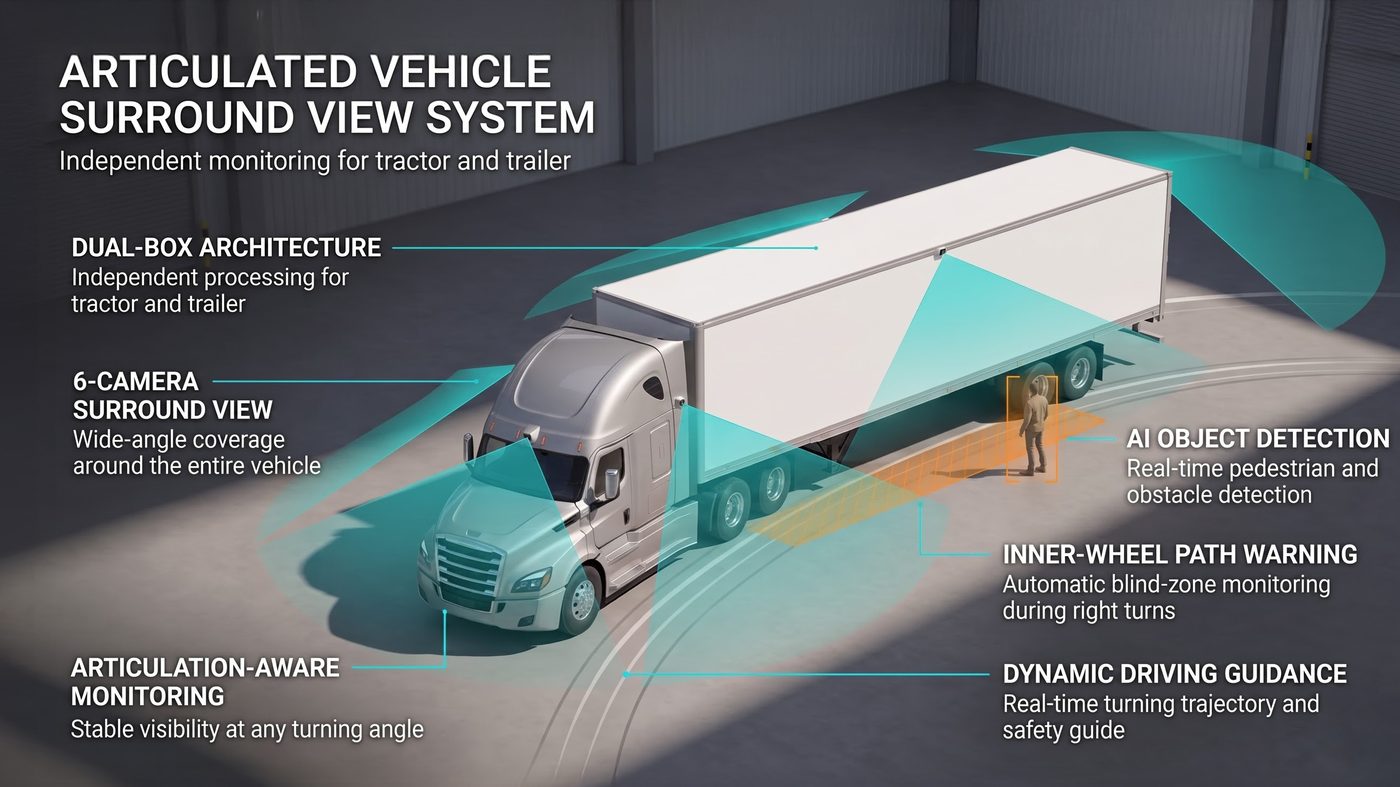

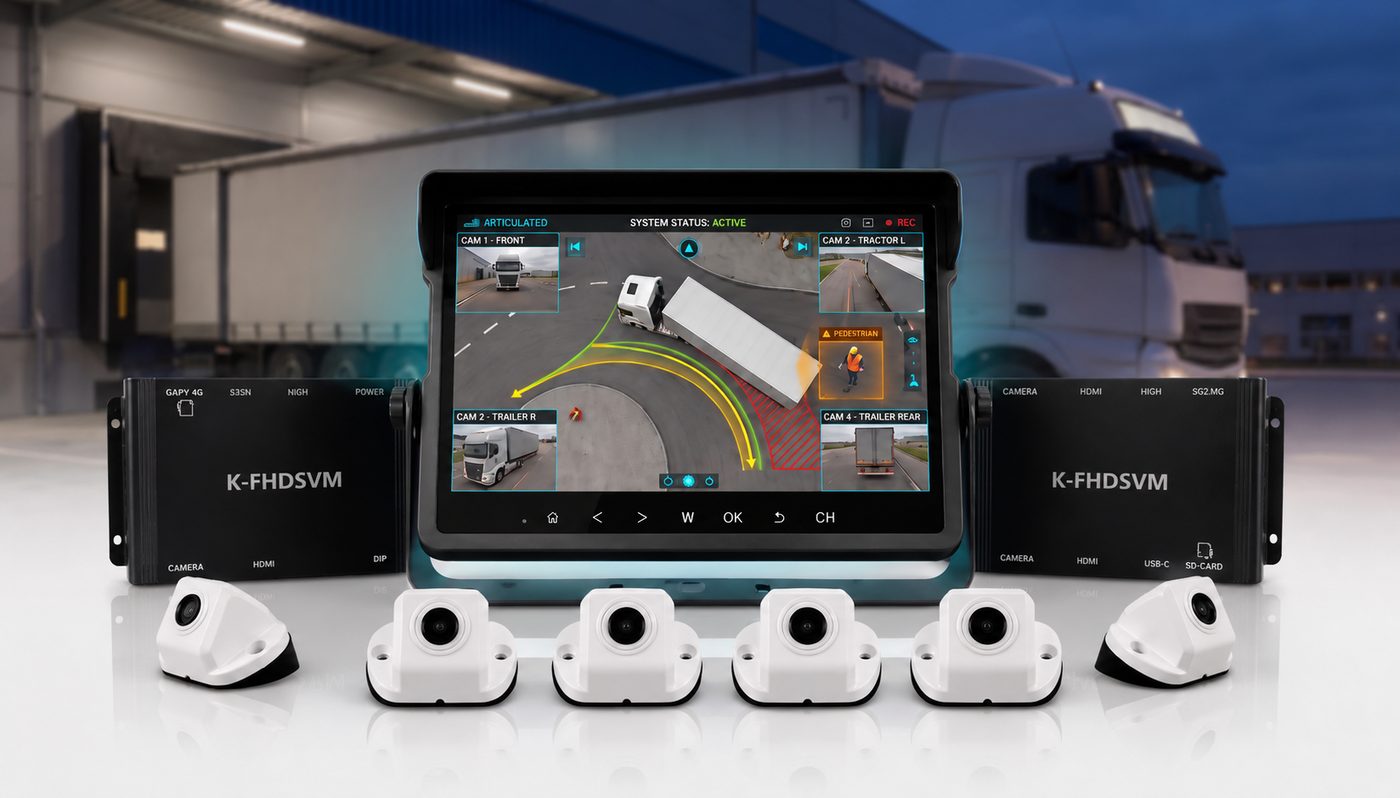

A dual-box architecture: a Head SVM on the tractor and a Body SVM on the trailer, three cameras each. KADEA software registers the two segments independently and shows two bird's-eye views on one screen — so the image never tears across the moving articulation joint, at any turn angle.

  • Zero-recalibration trailer swaps — calibration belongs to the camera set, so a swapped trailer runs immediately (2–4 s auto-calibration only for new sets)

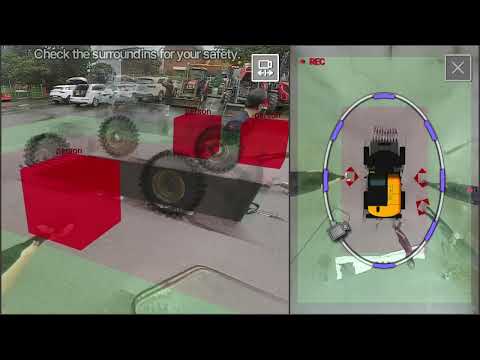

  • On-device Edge AI — detects pedestrians, two-wheelers & vehicles in 56 ms, no network required

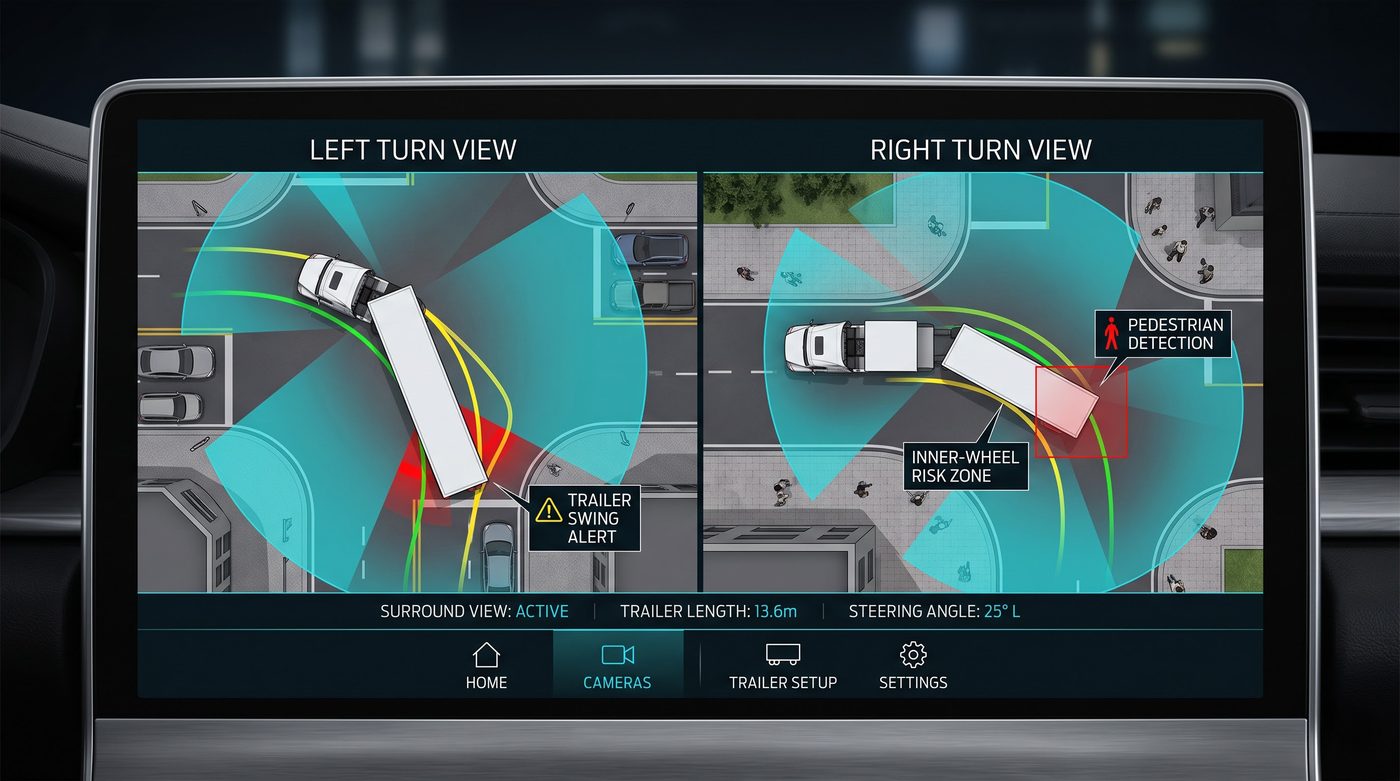

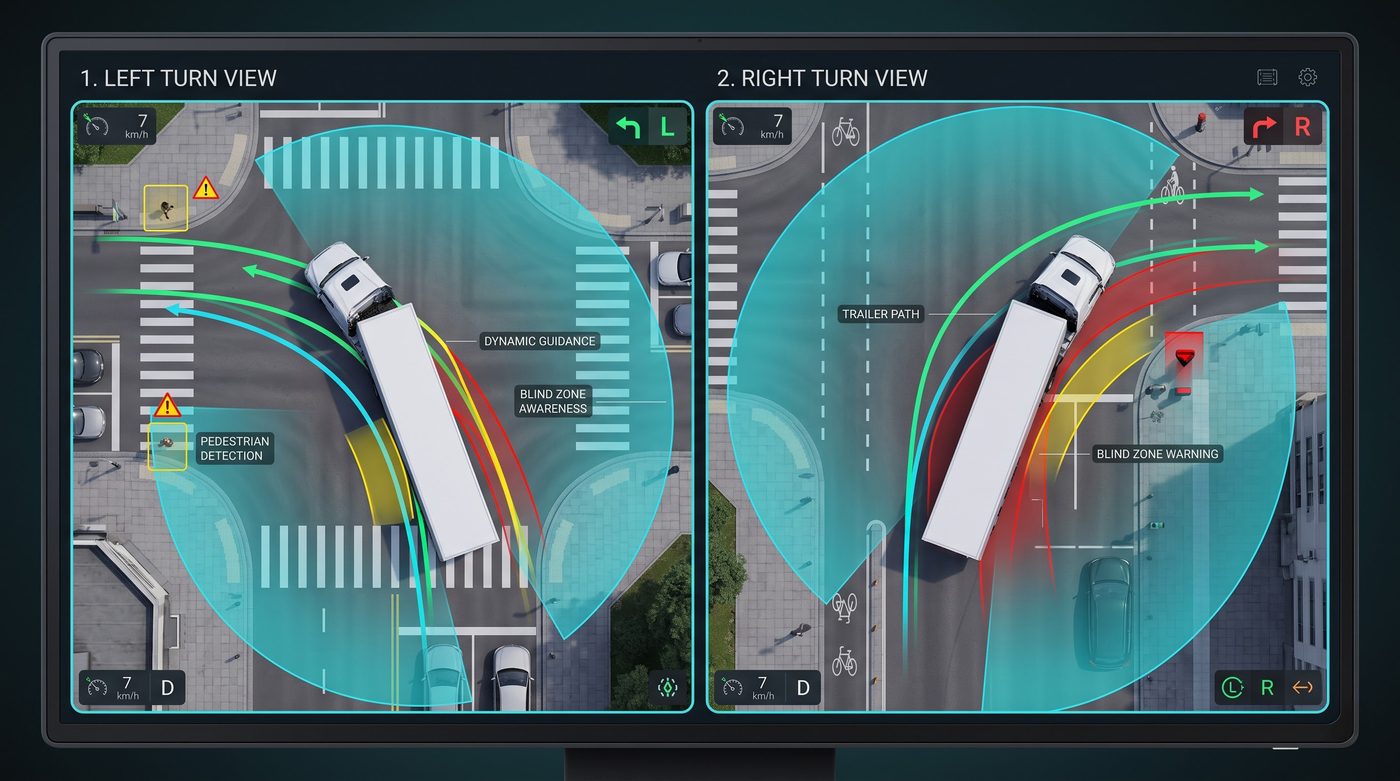

  • Turn-signal-linked off-tracking view — CAN-bus integration auto-surfaces the right-turn danger zone
  • 46 ft (14 m) coverage with selectable 2D / 3D views and 3D transparency
4-Channel

Quantum Vision

AI around-view for standard vehicles

KADEA's 4-channel 360° around-view monitor for standard trucks and commercial vehicles — front, rear, and both sides merged into one intuitive top-down view for parking, maneuvering, and blind-spot safety.

  • 4-channel 360° around-view composite
  • Optimized for rigid / standard commercial bodies
  • Same KADEA real-time imaging pipeline

How it works

Register each segment separately. Never stitch across the joint.

Dual-box SVM

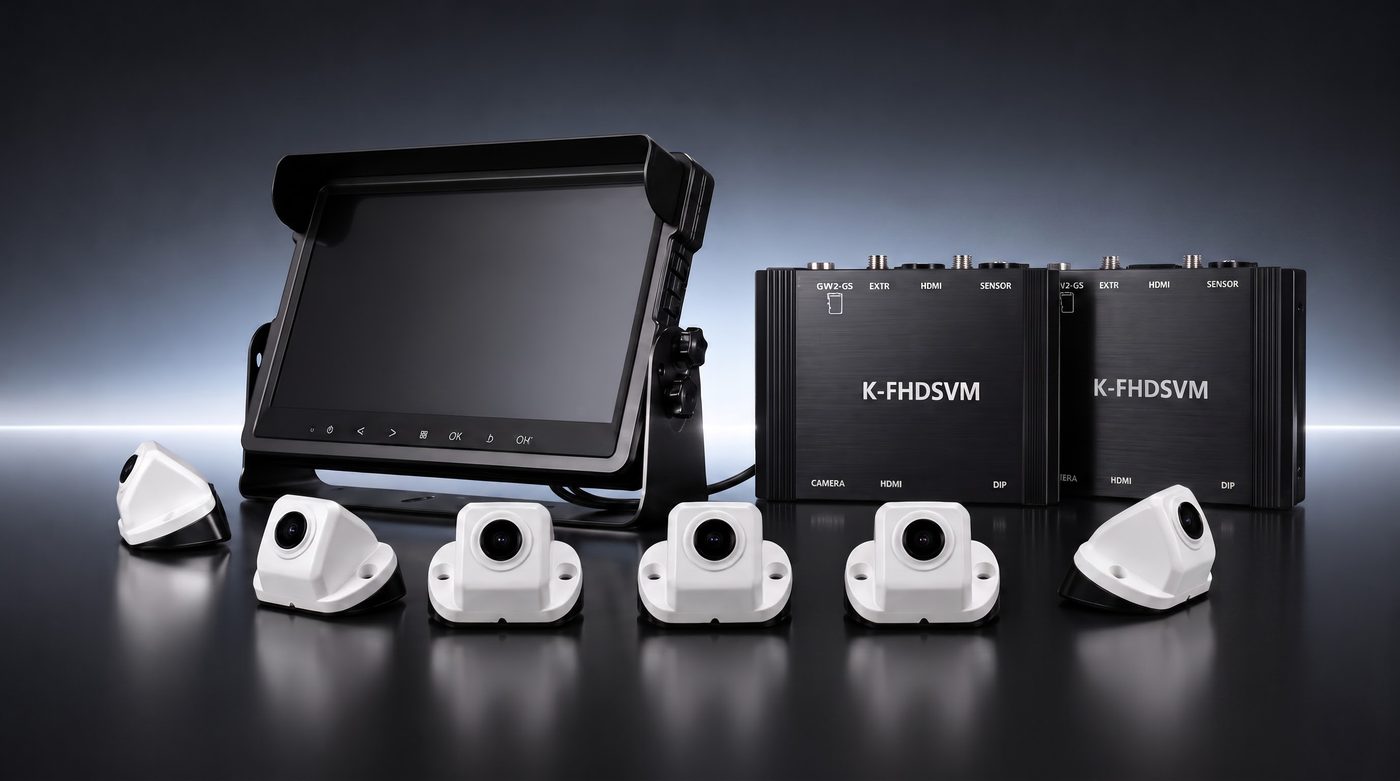

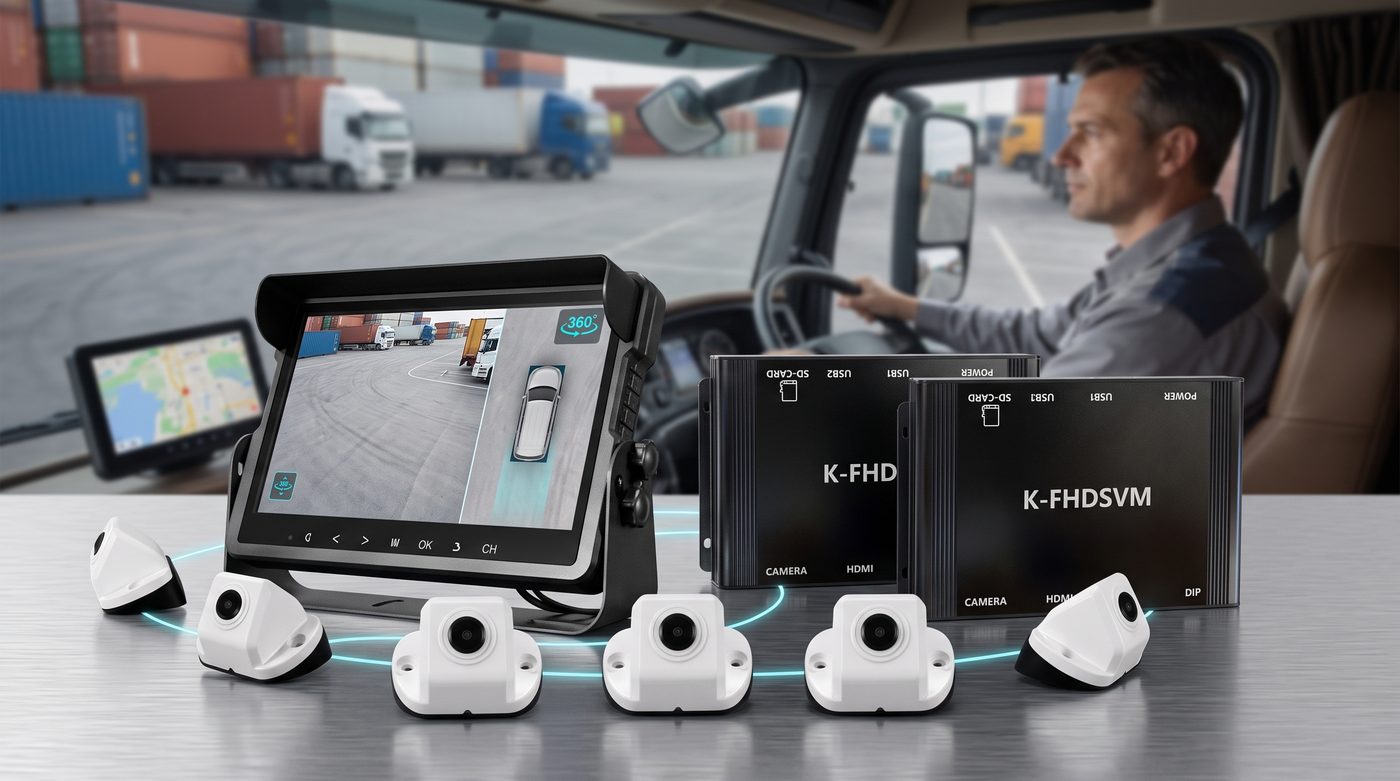

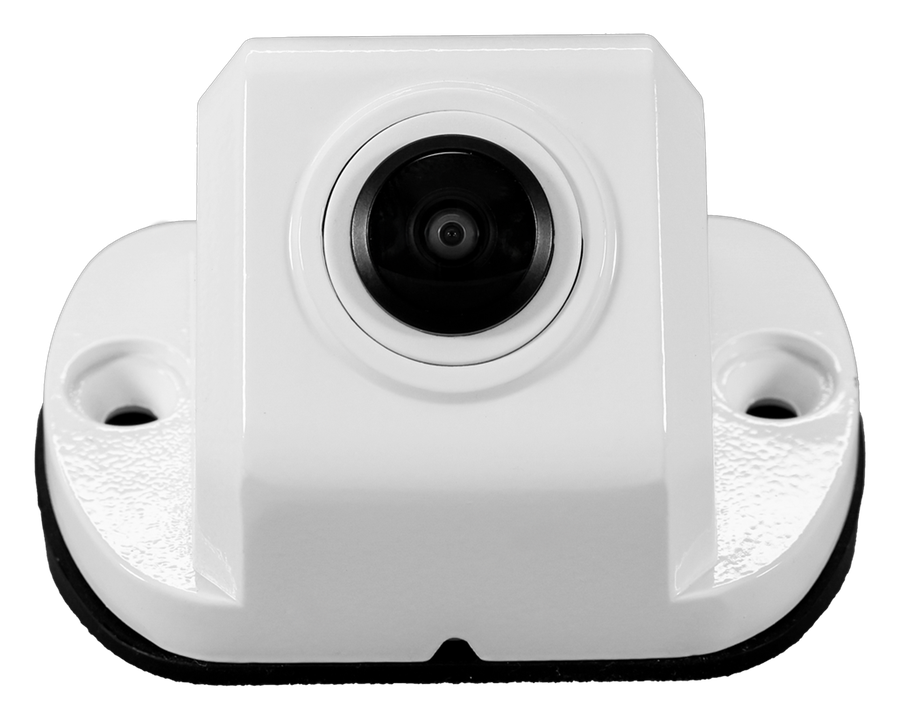

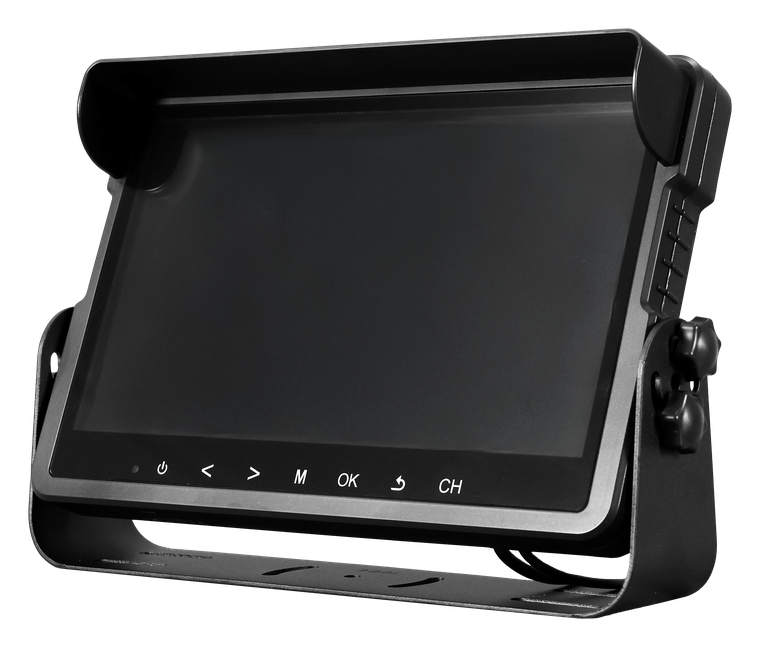

Head SVM (tractor) + Body SVM (trailer), 3 FHD cameras each, linked by a coiled cable, shown on one 10.1" in-cab display.

Patented GPU projection

An interpolation-free GPU engine maps every output pixel to its source, enabling real-time FHD on a Cortex-A55 platform.

Edge AI, no cloud

A 1-TOPS NPU per unit runs detection entirely on-device — so every function works on off-grid construction sites and farmland.

Tandem Vision · Technical specifications

Built for the harshest commercial environments.

ModelK-6CHFTV — 2-box SVM (2 ECUs)
Input6-channel FHD 1920 × 1080
Processing (per ECU)Quad-core Cortex-A55 · 1-TOPS NPU
RecordingMicroSD 256 GB · multi-channel H.264
Vehicle integration12/24 V CAN bus · DC 9–32 V
Operating temperature−25 °C to +75 °C (validated at KATECH)
Object detectionPedestrians, two-wheelers, vehicles in 56 ms
Intellectual property2 registered KR patents · 2 PCT applications · KC certified

CES 2027 · Las Vegas

See Tandem Vision live.

KADEA will present Tandem Vision in the Vehicle Tech & Advanced Mobility category at CES 2027. Book a meeting with our team for a live demonstration.

Request a CES 2027 meeting

About KADEA

Vision technology for the vehicles that move the world.

KADEA Co., Ltd. is a South Korea–based developer of AI 3D surround-view monitoring (SVM) systems for trucks, buses, and heavy machinery. Founded in 2022 and led by Jungoo Jang, KADEA engineers camera hardware, on-device Edge AI, and real-time image-stitching software into complete safety systems — from the 4-channel Quantum Vision to the flagship 6-channel Tandem Vision. Based in the Asan Innovation Cluster (강소특구), Chungcheongnam-do.

Get in touch

Partnerships, OEM integration, distribution & CES 2027.

KADEA supplies vehicle and special-body OEMs for line fitting and reaches existing fleets through an aftermarket dealer network. Reach the team directly.
